Brand Name : Vios
Model Number : P3.91
Certification : UL CE ROHS ISO ETL SGS SAA Fcc EMC
Place of Origin : China
MOQ : 1 Square Meter
Price : Negotiation
Payment Terms : L/C T/T Western Union Paypal Credit Card, MoneyGram
Supply Ability : 5,000 square meters per month
Packaging Details : Wooden box or Flight case
Pixels : P3.91 SMD2121
Brightness : 1800cd/square Meter
Pixel Density : 65536 Pixels/sqm
Module Size : 250mm*250mm
Drive Type : 1/8 Scanning
Power Supply : Meanwell
Working Voltage : AC 110V~220V±10%
Weight Of One Cabinet(Kg) : 12KG

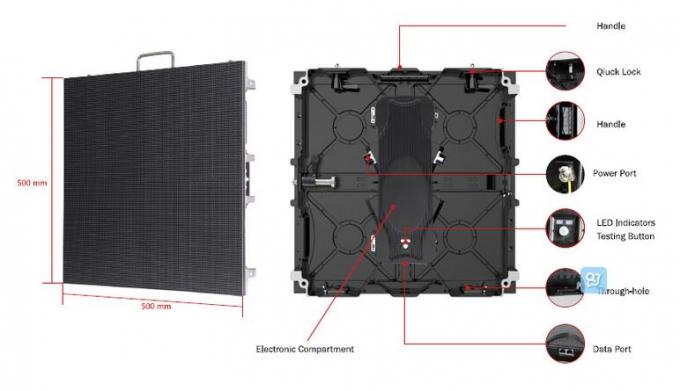

Cabinet Dimension : 500mm X 500mm / 500mm X 1000mm
Product Features:
1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.

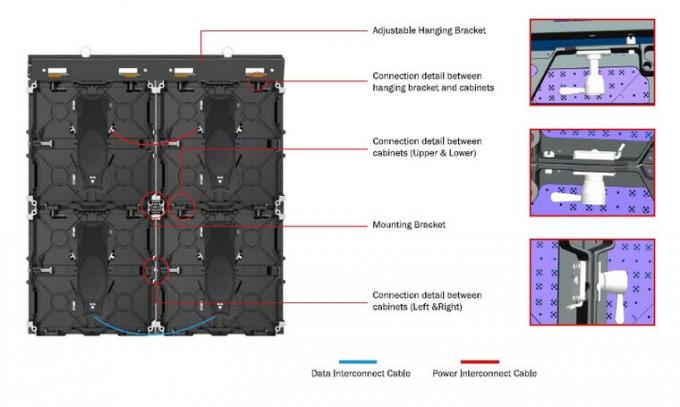

3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.

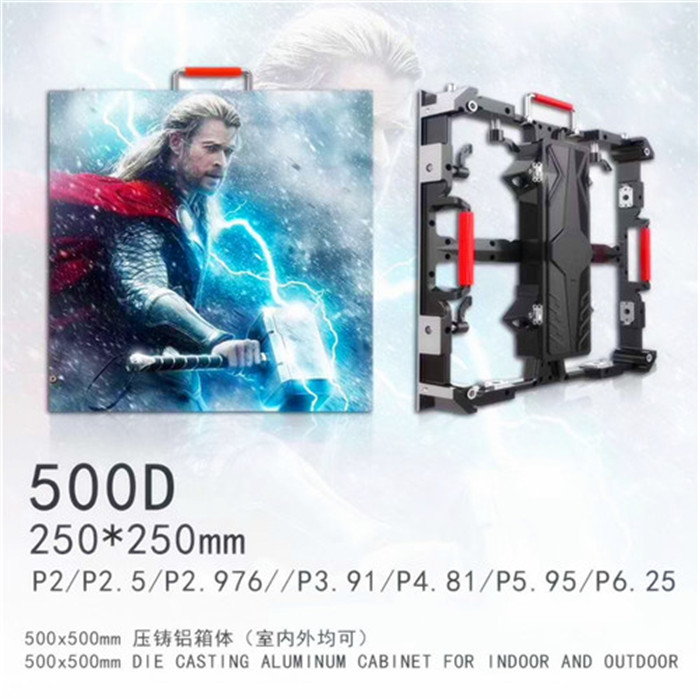

Indoor Die casting Aluminum 500mm Rental LED Displays | |||||
Module | Pitch/mm | P3.91 | P4.8 | P5.2 | P6.25 |
Module size/mm | 250x250 | 250x250 | 250x250 | 250x250 | |
Density of pixel/(dots/m2) | 65536 | 43264 | 43402 | 40,000 | |
Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | |
Led encapsulation | SMD2121 | SMD2121 | SMD3528 | SMD3528 | |
Resolution of module | 64X64 | 52x52 | 48x48 | 40x40 | |
Main | Optimum viewing distance | 3-10m | 4-15m | 5-18m | 6-20m |
View angle / ° | 140H,120V | 140H,120V | 140H,120V | 140H,120V | |
Max power consumption/W/M2 | 1,100 | 1,100 | 1,000 | 1,000 | |
Size of cabinet/mm | 500X500 | 500x500 | 500x500 | 500x500 | |
Resolution of cabinet | 128X128 | 104x104 | 96x96 | 80x80 | |
Weight of cabinet/kg | 9 | 9 | 9 | 9 | |
Driving method | 1/16 scan constant current | 1/13 scan constant current | 1/12 scan constant current | 1/4scan constant current | |
Refresh rate Hz/S | ≥1500 | ≥1500 | ≥1500 | ≥1500 | |
Luminance of white balance | ≥1500 nits | ≥1500 nits | ≥2000 nits | ≥2000 nits | |
Operation of Environmental Temperature/°C | below 30 to above 50 | ||||
Working vlotage | 110-220 VAC/+/- 10% | ||||
Grey scale/color | displaying colors≥16.7M(synchronized) | ||||
Brightness adjustment | 256 levels of each color(manually),100 levels of each color(automatically) | ||||
Input signal | RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc | ||||
Control system | linsn(sending card,receiving cards and Hubs) | ||||
Average of non-failure life | >50,00h | ||||
Life span | >100,000h | ||||
Defect dot rate | <0.0001 |
![]() |
AC 110-220V Rental LED Display P3.91 P4.81 P5.2 1/8 Scanning Drive High Definition Images |
