Outdoor Full Color LED Display Advertising Double Sided IP67 High Resolution LED Screen

Shenzhen Vios Electronic Technology Co., Ltd
Contact Now

Outdoor Full Color LED Display Advertising Double Sided IP67 High Resolution LED Screen

Brand Name : Viso

Model Number : PH8 PH10

Certification : UL CE ROHS ISO ETL SGS SAA Fcc EMC

Place of Origin : China

MOQ : 1 Square Meter

Price : Negotiation

Payment Terms : L/C T/T Western Union Paypal Credit Card, MoneyGram, VISA

Supply Ability : 5,000 square meters per month

Delivery Time : 4-6 work days

Packaging Details : Wooden box or Flight case

module size : 256mm×128mm / 320*160mm

pixel pitch : 8mm

pixel density : 15625dots / m2

Module resolution : 32dots(W)×16dots(H)

Pixel configuration : 1r1g1b

scan mode : 1 / 4

cabinet size : 768mm×768mm / 1920*1600mm

Interface : HUB75B

Contact Now


Outdoor Full Color LED Display Advertising Double Sided screen IP67 led Sign

Products Function:

1. High intensity and can be adjusted , so can meet the request of teh customers according the application environment.

2. Best equality, commendably solve the problem of the mosaic, have the excellent consistency.

3. To pictures and character, have clear, exquisite and real display effect.

4. Big viewing angle to 110 degree at horizontal line, 60 degree at vertical line, you can see at every angle at thin range, no picture change, no color excursion.

5. Can repair each LED lamp. so the cost of maintain is lower and it is easier to be repaired.

Product Description

The specifications of modules

Items

Parameter

Product Model

P8 Full Color Led Module

Module size

256mm×128mm

Pixel pitch

8mm

Pixel density

15625dots / m2

Pixel configuration

RGB 3 in 1

Module resolution

32dots(W)×16dots(H)

Module maximum power consumption

25W

Module Thickness

2.8CM

Module Weight

0.55kg

Driving method

Constant Current Driving

Scanning method

1 / 4 scan

Interface

HUB75B

Brightness

≥7500cd / m2
The specifications of cabinets

Cabinet size

768mm x 768mm

Module quantity

18pcs

Power supply

5V / 40A 5V / 60A

Cabinet resolution

96×96dots

Optimal viewing distance

8M~50M

Optimal viewing angle

160°(W) 120°(H)

RHWorking temperature

(Work :-20°C~+50°C)

System operating humility

10%-95%
The specifications of power supplier

Operating Voltage

AC220V±10%

Average power consumption

300W / H

Maximum power consumption

≤600W / square meter

Electric current

≤20mA(single LED)

The specifications of control card

Control Panels

Pentium4 or above

Operating system

WIN98 / 2000/NT / XP

Control model

Synchronization with PC
The specifications of the main technical parameters

Driving device

Constant Current Driving

Refresh rate

≥600HZ

Grey scale

RGB Each 256, can display 16.7M colors)

MTBF

≥9000hours

Power switch

Automatic Switch

Display Mode

800×600 / 1024×768 / 1280×900

Application :

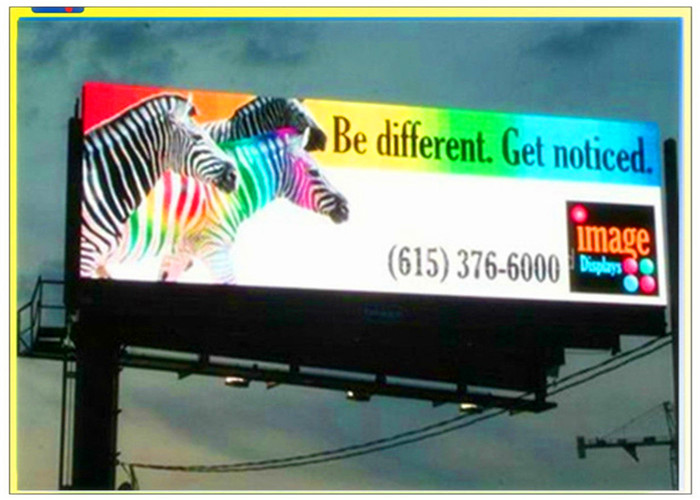

Billboard on the road . Bank info. Station . Stage .
