Brand Name : Vios
Model Number : P18.75
Certification : UL EMC CE ROHS Fcc ISO90001 ETL SGS SAA
Place of Origin : China
MOQ : 1 Piece / 1 Set
Price : negotiable
Payment Terms : L/C, T/T, Western Union, Paypal, Credit Card, MoneyGram, VISA
Supply Ability : 5000 Square/one month
Delivery Time : 7-15days
Packaging Details : Carton box / Flight case / Wooden box
Operating Humidity : 10%~90%
Cabinet Material : Aluminum
Pixel Density : 2844 Dots/sq.m
Input Voltage(AC) : 110~220 V
Operation Temperature : -20~+40 ºC
IP Rating : IP65
Pixel Configuration : SMD3528
Power Consumption(Max/Avg) : 200/125 W/sq.m
IP65 waterproof LED curtain display P18.75 5000 cd/m2 for Permanent installation
Product description:
Parameter:
P18.75 Outdoor Full Color LED Curtain Main Parameters | ||
Visual Characteristics | Unit | Value |
Pixel Pitch | mm | 18.75 |
Pixel Density | Dots/sq.m | 2844 |
Pixel Configuration | SMD3528 | |
Cabinet Resolution | dots | 32×32 |
Refresh Rate | Hz | ≥1200 |
View Angle(H/V) | ° | 120/120 |
Brightness | nits | ≥5000 |
Gray Scale | Bit | 16 |
IP Rating | 65 | |
Power Consumption(Max/Avg) | W/sq.m | 200/125 |
Input Voltage(AC) | V | 110~220 |
Modular Characteristics | ||
Cabinet Size(W×H×D) | mm | 600×600×55 |
Cabinet Material | Aluminum | |
Cabinet Weight | Kg | 7 |
Module Size(W×H) | mm | 600×600 |
Environment | ||
Operation Temperature | ºC | -20~+40 |
Operating Humidity | 10%~90% | |
Driving Mode | 1/4 Scan | |
Control Distance | Cat 5E <100m,Single mode fiber<10Km | |
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. |
Our company:
Shenzhen Vios co.,ltd was founded in 2007, which is a national high-tech enterprises specialized in LED display products R&D, production, sale and engineering services.
Shenzhen Vios World co.,ltd will be committing to provide more cost-effective, more energy-efficient, and greener LED optoelectronic products, contributing to building a green home.
Shenzhen Vios co.,ltd consistent source of strength for the customer is the company's growth and expansion, the company has the perfect pre-sale tracking service system and truly customer -centric marketing module.
OEM, ODM, Own Brand(LED WORLD).
It export from Year 2008, have Own Export License.
Why choose us:
Product aging:

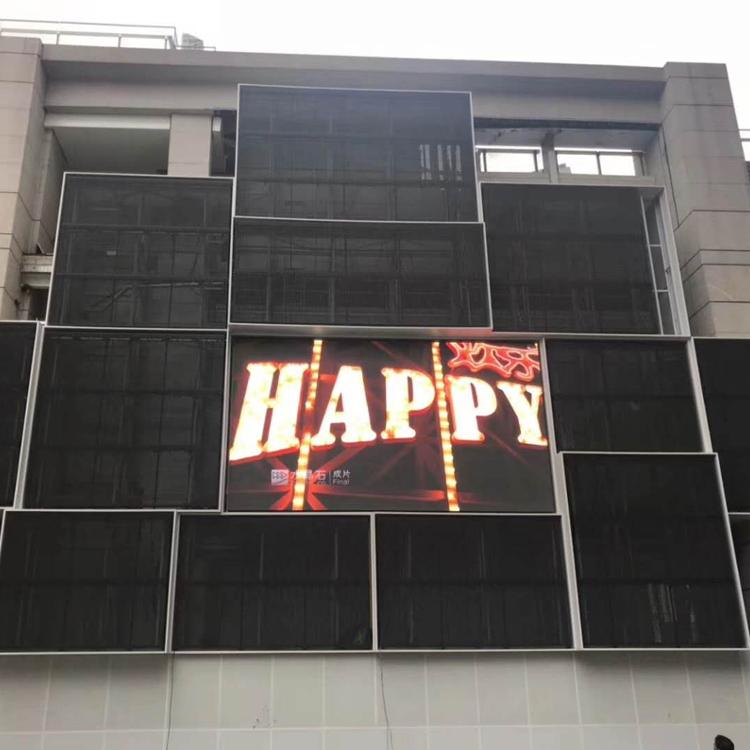

Project case:
