IP65 Waterproof Led Advertising Display Billboard 8mm Pixel Outdoor Smd 160 Degree

Product Categories
Shenzhen Vios Electronic Technology Co., Ltd
Contact Now

IP65 Waterproof Led Advertising Display Billboard 8mm Pixel Outdoor Smd 160 Degree

Brand Name : Vios

Model Number : P8 P10

Certification : UL EMC CE ROHS Fcc ISO90001 ETL SGS SAA

Place of Origin : China

MOQ : 1 Piece / 1 Set

Price : negotiable

Payment Terms : L/C, T/T, Western Union, Paypal, Credit Card, MoneyGram, VISA

Supply Ability : 5000 Square/one month

Delivery Time : 7-15days

Packaging Details : Carton box / Flight case / Wooden box

Pixel : 8mm

LED Type : SMD

Cabinet Size : 960x960mm

Viewing Angle : 160°/160°

Brightness : 6000-7500 Nits

Ingress Rate : IP65

Contact Now

Waterproof IP65 Led Advertising Billboard P8mm SMD Design

Application:

Vios outdoor E Series Waterproof IP65 Led Advertising Billboard are the most popular outdoor led display product in the market, its SMD design provides much wider viewing angle and color performance, plus high brightness offers great visibility to the target audience.

Features and Advantages:

Brand New SMD Design

  • Close viewing distance
  • Wide viewing angle
  • Front or rear serviceable

Strong Cabinet Design

  • IP65 for extreme weather protection
  • Cold rolled steel with extra powder coating for anti-rust
  • Smart side handle design for easy installation

High Visibility

  • Brighter even when in sunny days
  • Vivid color
  • High definition

Parameters

Brightness nits 6000
Color temperature deg.k 3200 ~ 9300
Viewing angle - Horizontal deg. 140(+70/-70)
Viewing angle - Vertical deg. 140(+70/-70)
Cabinet weight kg 46
Cabinet width mm 960
Cabinet height mm 960
Cabinet depth mm 140
Cabinet area sq. m. 0.92
Cabinet material 　 Cold Steel
Aspect ratio 　 1:1
Ingress protection (Front/Rear) IP IP65/IP43
Operating temperature range deg. C - 20 to 50
Operating humidity range HR 10％ to 90％
Pixel type and configuration R/G/B SMD 3in1
Pixel pitch mm 8.
Pixel matrix per cabinet 　 120x120
Pixels per cabinet 　 14400
Lines per meter 　 125
Pixels per sq. meter 　 15625
LEDs per sq. meter 　 15625
Recommended minimum viewing distance m 8
Colours 　 281trillion
Gray scale Levels 65536 levels per colour
Brightness control Levels 100
Digital processing bit 16
Frame rate Hertz 60
Display refresh rate Hertz 1920
Input voltage VAC 110/240
Input power frequency Hertz 50/60
Input power (max/avg) Watts per sq.m 850/290
MTBF Hours ≥10000
Lifetime (50%Brightness) Hours ≥100000
Module brightness uniformity 　 ＜5％
Blind spot rate 　 ＜0.0001
Earth leakage current mA ＜2
Red wavelength nm 623
Green wavelength nm 525
Blue wavelength nm 470
Panel input format (with video processor) 　 VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV
Data interconnection 　 CAT6 cable/Fiber
Operating system 　 Windows(XP/Vista/7/8/10)
Control distance 　 Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers.

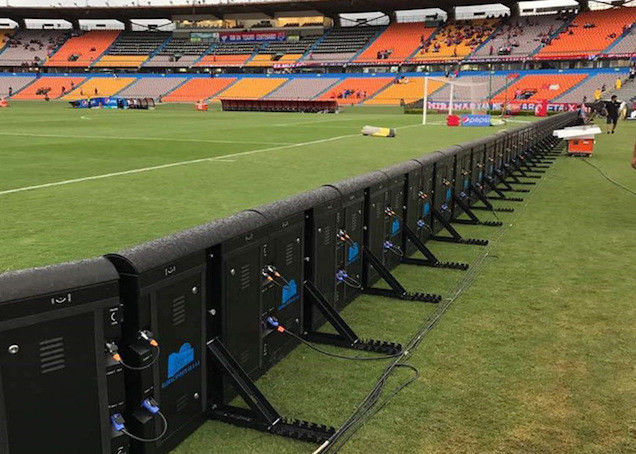

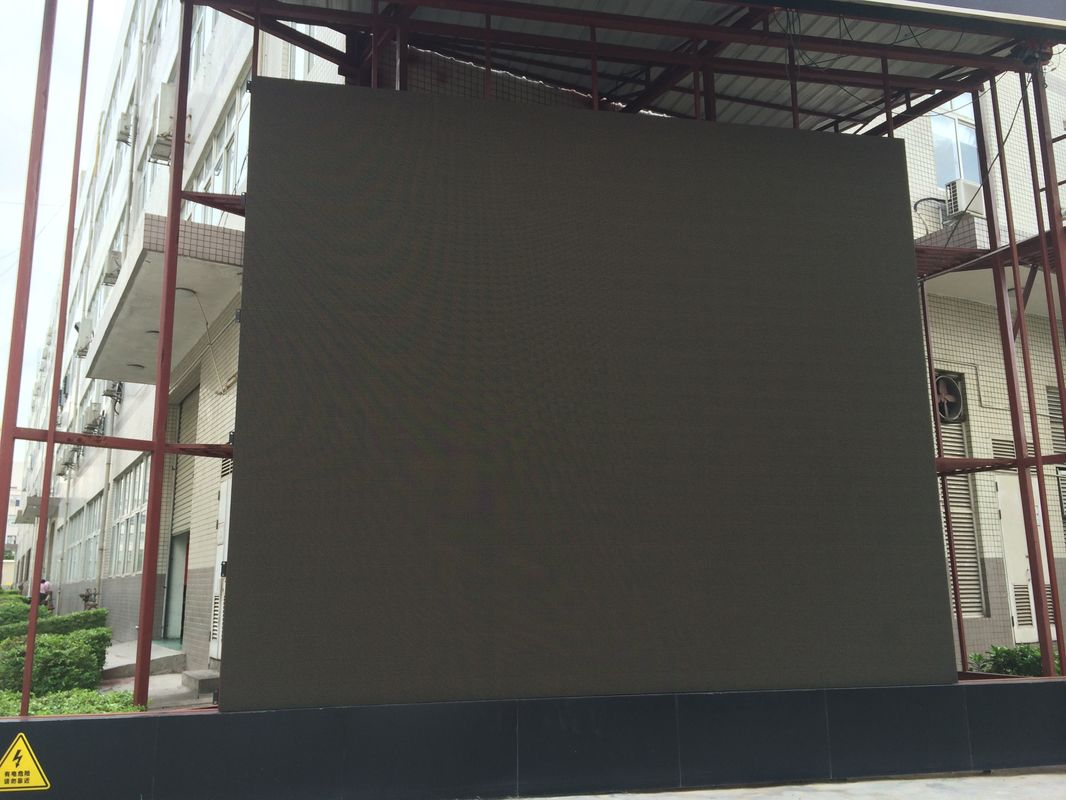

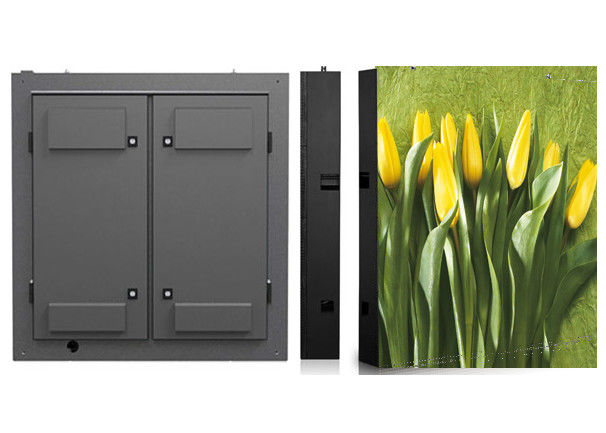

Pictures:

IP65 Waterproof Led Advertising Display Billboard 8mm Pixel Outdoor Smd 160 Degree

IP65 Waterproof Led Advertising Display Billboard 8mm Pixel Outdoor Smd 160 DegreeIP65 Waterproof Led Advertising Display Billboard 8mm Pixel Outdoor Smd 160 Degree
