Aluminum Cabinet Large Led Screen Curtain , Led Panel Screen Evironment Protection

Product Categories

Shenzhen Vios Electronic Technology Co., Ltd

Contact Now

Name: Aluminum Cabinet Large Led Screen Curtain Led Panel Screen Evironment Protection
Brand: Vios
Price: 1 USD

Brand Name : Vios

Model Number : P16.66

Certification : UL EMC CE ROHS Fcc ISO90001 ETL SGS SAA

Place of Origin : China

MOQ : 1 Set

Price : negotiable

Payment Terms : L/C, T/T, Western Union, Paypal, Credit Card, MoneyGram, VISA

Supply Ability : 5000pcs/one month

Delivery Time : 7-15days

Packaging Details : Carton box / Flight case / Wooden box

Average power : <300W/sq.m

Working temperature : 20ºC~+50ºC±10%

Frame frequence : 50/60Hz

Uniformity : 97%

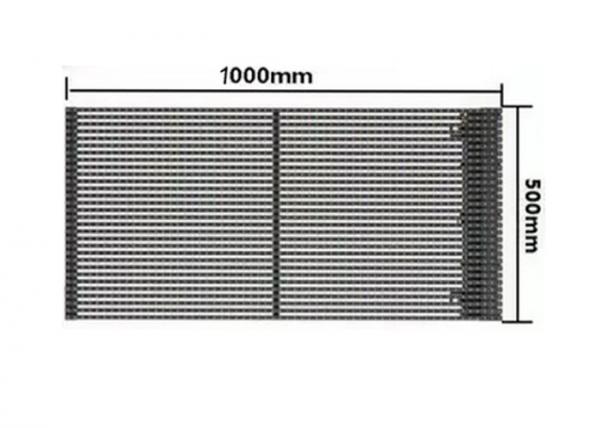

Size of cabinet : 500mmx 1000mm x 55mm

Weight of Cabinet : <8.2KGS

Material of Cabinet : Aluminum

Color temperature : 3200-9300k

Contact Now

IP65 P16.66 LED curtain display high brightness 7000cd/m2 500mm x 1000mm cabinet

Product description:

Independent driving circuit with super thin power supply;
Aluminum cabinet with light weight and lasting,long life span;
High definition, Good uniformity；
high strength, anti-aging fabrics, IP66 protection grade, can withstand any bad environment test;
Can be fixed install or hung for rental, packed with flight case, good protection and easy to move;
High level: High level protection, front and rear can reach to IP65;
Transparent design, light transmittance up to 25%, good lighting and wind transparent, good heat dissipation,special design for stage background;
Independent driving circuit, equiped slim power supply, no fans no noise,good evironment protection;
SMD led encapsulation confirm wide view angle up 140 degree for horizontal and vertical;
Brightness can be adjusted between 2000 and 4000nits, suit to different request on brightness of inddor and outdoor;

Parameter:

P16.66 Indoor full Color LED Mesh Curtain Specification
Pixel pitch			16.66mm
Pixel Configuration			16.66mm
LED component			DIP346
Resolution of cabinet			30x60
Material of Cabinet			Aluminum
Weight of Cabinet			<8.2KGS
Brightness			>7000cd/sq.m
Density			3600dots/sq.m
Best viewing angle			110 /50
Best viewing distance			16-200M
Size of cabinet			500mmx 1000mm x 55mm
Color temperature			3200-9300k
Maximum power consumption			<800W/sq.m
Average power consumption			<300W/sq.m
Driving method			static
Control method			Synchronization
Gray scale			65536
Colors			256256256
Uniformity			97%
Working voltage			AC220V/110V±10%
Working temperature			-20ºC~+50ºC±10%
Working humidity			10% ~ 90%
IP grade			IP65
Life Span			100,000 hours
Data transafer method			RJ45
MTBF			10,000 hours
Frame frequence			50/60Hz
Refresh frequence			>1920Hz
Pratical standard			CCC TUV-CE ETL etc.
Effectivce Communication			Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Distance(without relay)			Single-mode optic fiber: 10KM
Accepting signal with video processor			PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform			WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

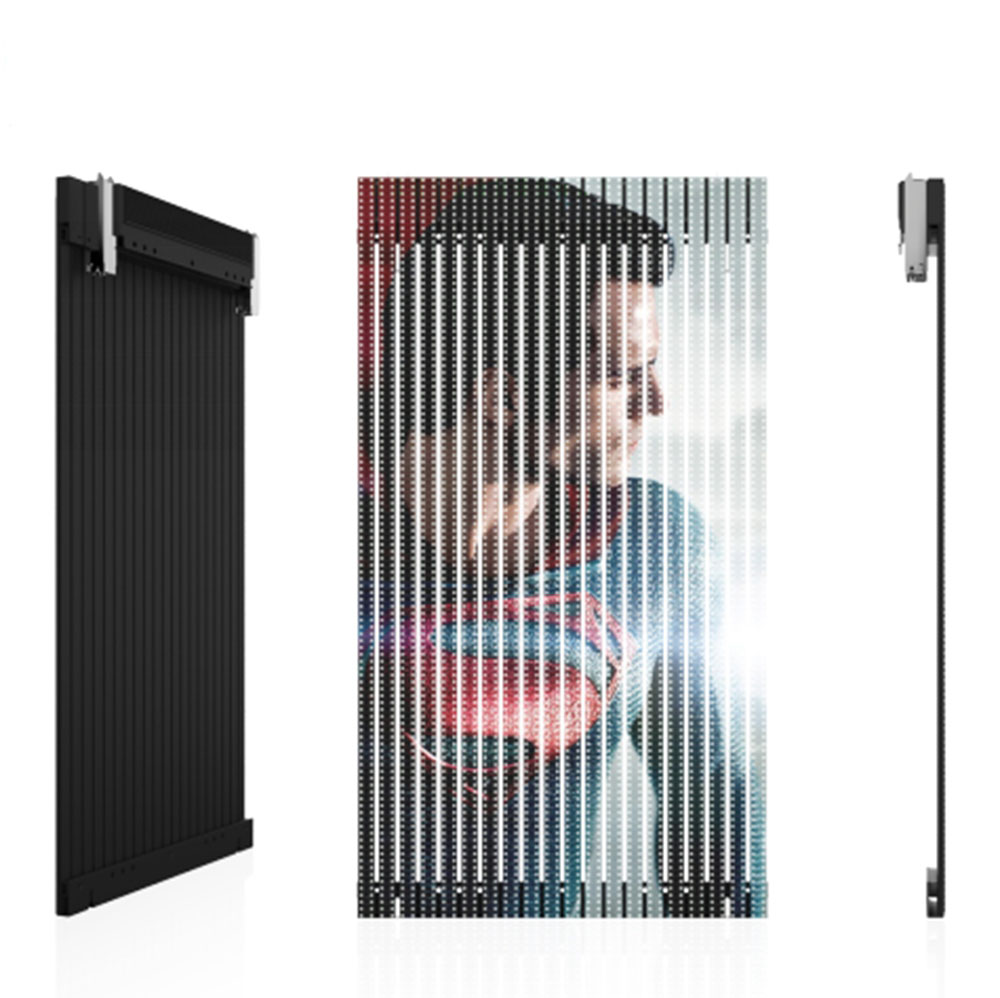

Product detail:
Aluminum Cabinet Large Led Screen Curtain , Led Panel Screen Evironment Protection

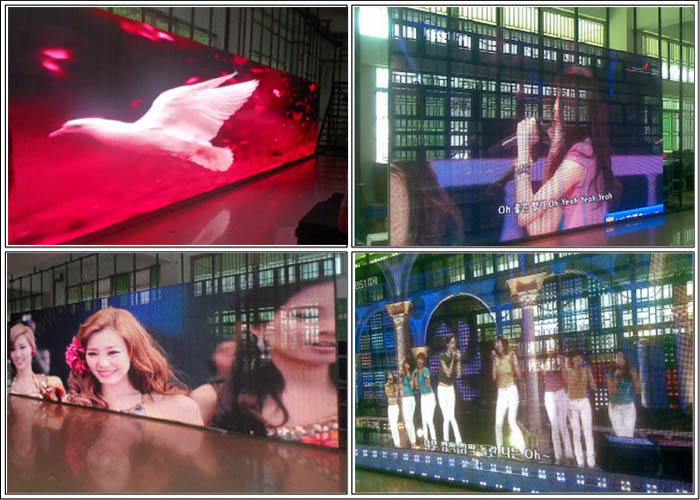

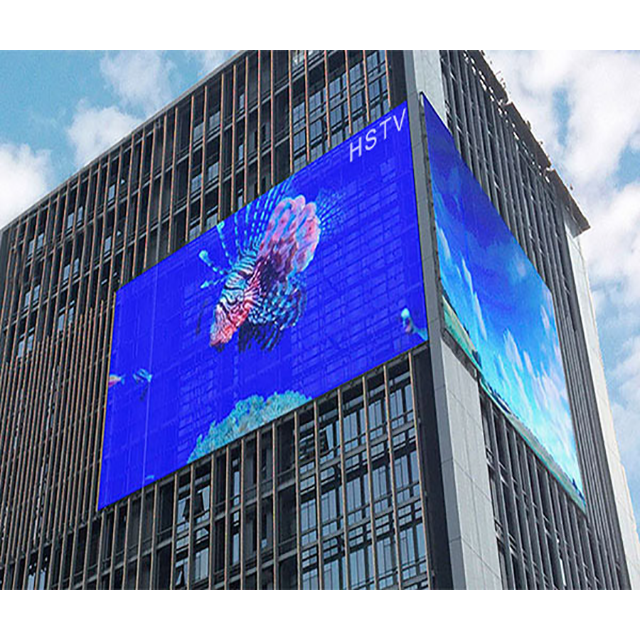

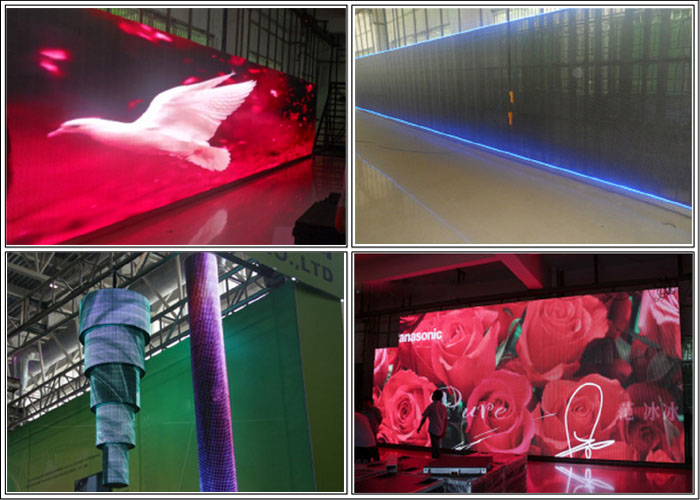

Project case:
