Outdoor LED Grille Screen Rental Nova Control System IP65 Front / Rear Protection Level

Name: Outdoor LED Grille Screen Rental Nova Control System IP65 Front Rear Protection Level
Brand: Vios
Price: 1 USD

Outdoor LED Grille Screen Rental Nova Control System IP65 Front / Rear Protection Level Manufactures

Brand Name : Vios

Model Number : P33.33

Certification : UL EMC CE ROHS Fcc ISO90001 ETL SGS SAA

Place of Origin : China

MOQ : 1 Piece / 1 Set

Price : negotiable

Payment Terms : L/C, T/T, Western Union, Paypal, Credit Card, MoneyGram, VISA

Supply Ability : 5000pcs/one month

Delivery Time : 7-15days

Packaging Details : Carton box / Flight case / Wooden box

Protection level : IP65 front & rear

Average power consuption(W/㎡) : 120

Refersh rate(Hz) : >1920

pixel pitch : 33.33 mm

Input voltage(V) : AC110/220v +-10%

Cabinet weight/kg : 6.5 kg

Storage temperature(℃) : -10 to 55

Contact Now

Waterproof LED curtain display P33.33 outdoor Static scan nova control system

Product description:

SMD led encapsulation confirm wide view angle and good stability;
Multifunctional indoor & outdoor mesh LED ;
High pixel density, Long view distance, High definition, Good display vision;
High lighting penetrated design ensure good ventilation and good heat dissipation ；
SMD led encapsulation confirm wide view distance;
Transparent design, light transmittance up to 25%, good lighting and wind transparent, good heat dissipation,special design for stage background;
Widely used for stage, concert, show, banquet, wedding, rental display, also can be fixed as a display video wall;
Mesh design for good heat dissipation,good light transmission,light weight;

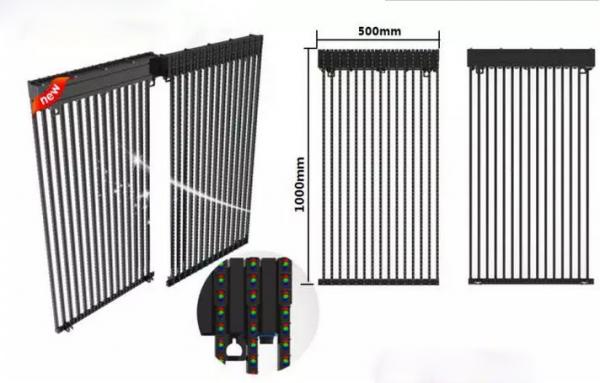

500mm cabinet is pieced together easily with 1000mm,helpful for stage design;
High level: High level protection, front and rear can reach to IP65;

Parameter:

LED curtain specification
Iten name	M3330D
pixel pitch	33.33
pixel configration	1R1G1B(DIP346)
Cabinet configration/pixels	15x30
Pixel density/㎡	900
Cabinet dimension/mm	500x1000x55
cabinet material	Die-cast aluminum
Cabinet weight/kg	6.5
Transparency rate	0-70%
Gray level	16
Color lavel/Bit	65536
Refersh rate(Hz)	>1920
Driving mode	Static scan
Brightness(Nits)	7000
Horizon viewing angle(°)	110
Vertical viewing angle(°)	50
Input voltage(V)	AC110/220v +-10%
input frequency(Hz)	60/50
Peak Power consumption(W/㎡)	400
Average power consuption(W/㎡)	120
Storage temperature(℃)	,-10 to 55
Working temperature(℃)	,- 42 to 42
Storage humidty(RH)	10%-90%
Working humidty(RH)	10%-90%
Protection level	IP65 front & rear
Life span(hours)	10000
Installation way	Fixed
Maintance way	Front & rear
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Our company:
Shenzhen Vios co.,ltd was founded in 2007, which is a national high-tech enterprises specialized in LED display products R&D, production, sale and engineering services.
Shenzhen Vios World co.,ltd will be committing to provide more cost-effective, more energy-efficient, and greener LED optoelectronic products, contributing to building a green home.
Shenzhen Vios co.,ltd consistent source of strength for the customer is the company's growth and expansion, the company has the perfect pre-sale tracking service system and truly customer -centric marketing module.
OEM, ODM, Own Brand(LED WORLD).
It export from Year 2008, have Own Export License.

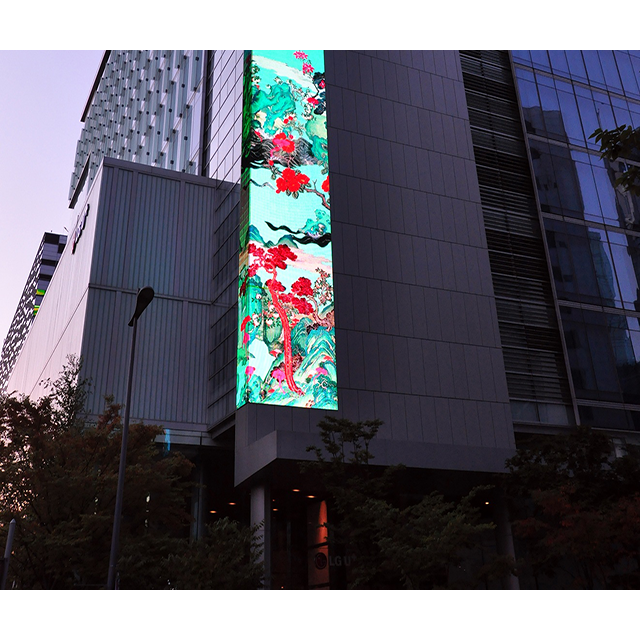

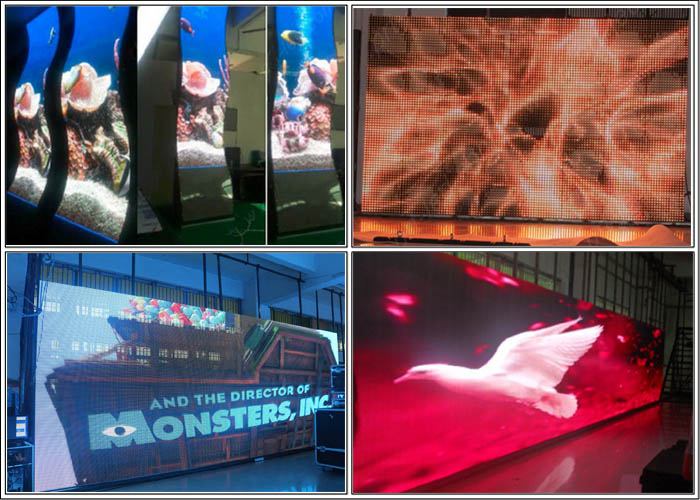

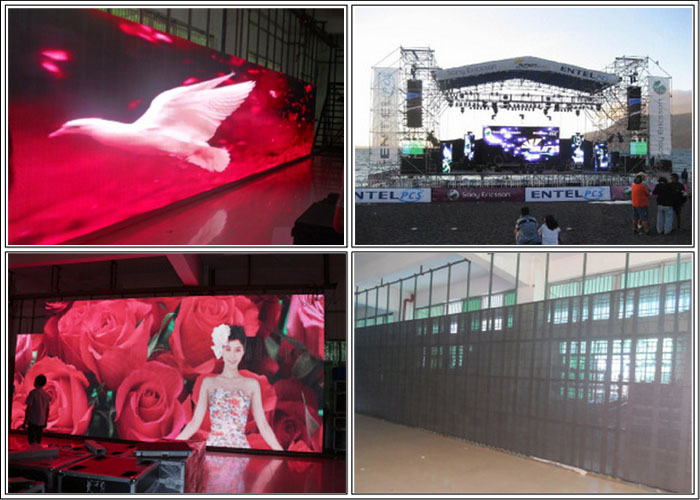

Project case:
Outdoor LED Grille Screen Rental Nova Control System IP65 Front / Rear Protection Level
